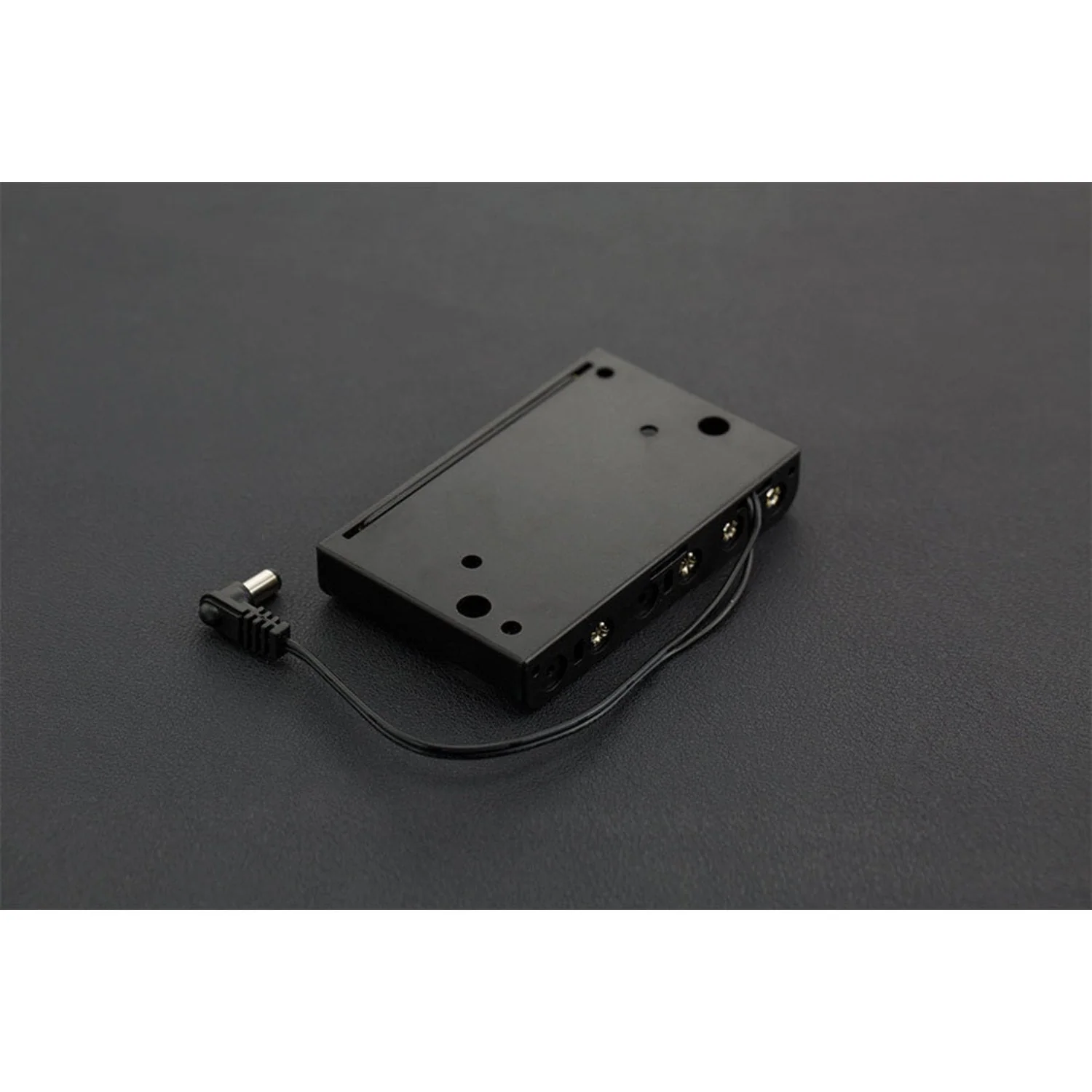

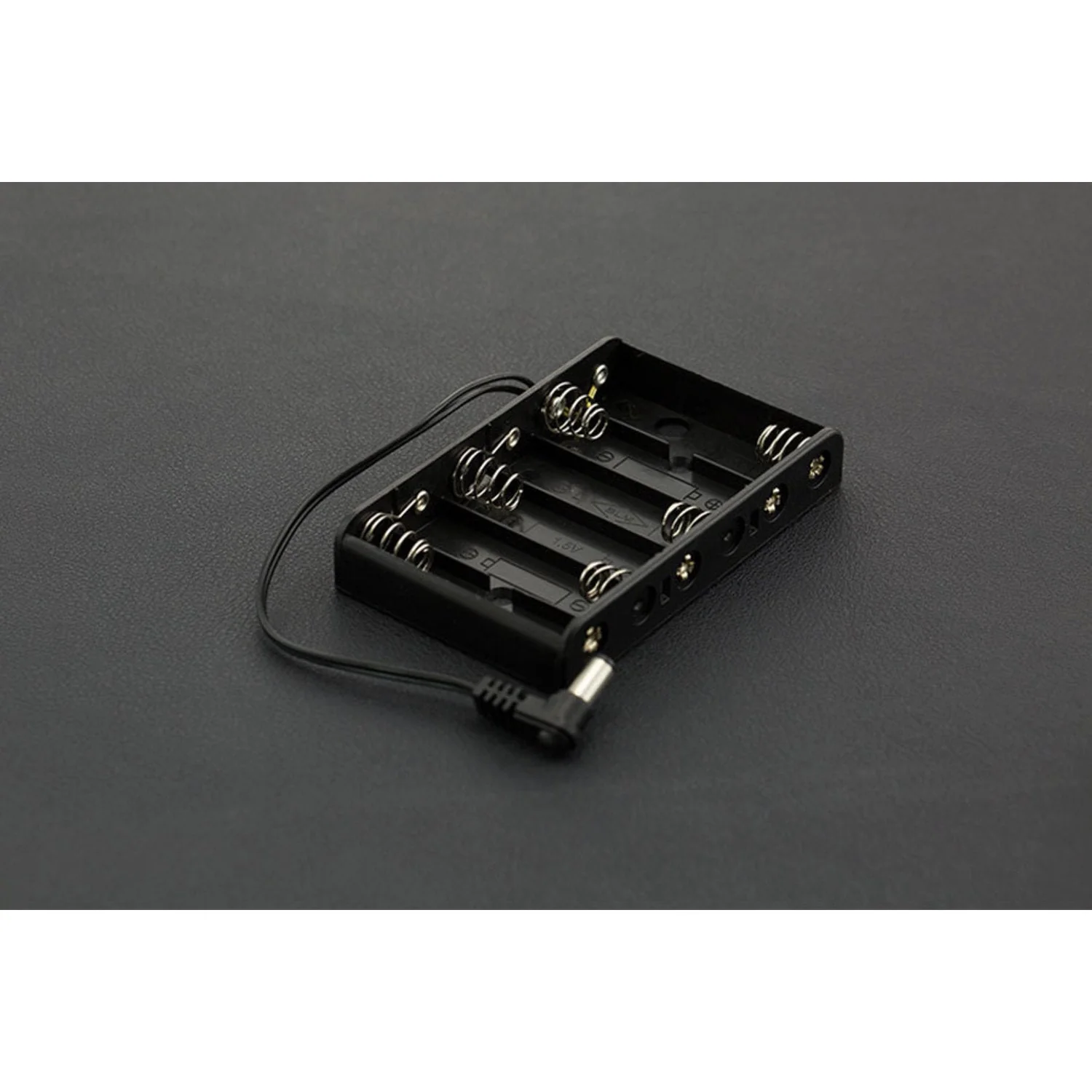

A 6×AA battery holder with a DC 2.1mm power jack that plugs directly into an Arduino's barrel jack input. Creates a 7.2V rechargeable battery pack from NiMH/NiCd cells or a 9V pack from alkaline cells. Features mounting holes for secure installation.

Specifications

• Cell Quantity: 6× AA
• Output Voltage: 7.2V (NiMH/NiCd) or 9V (alkaline)

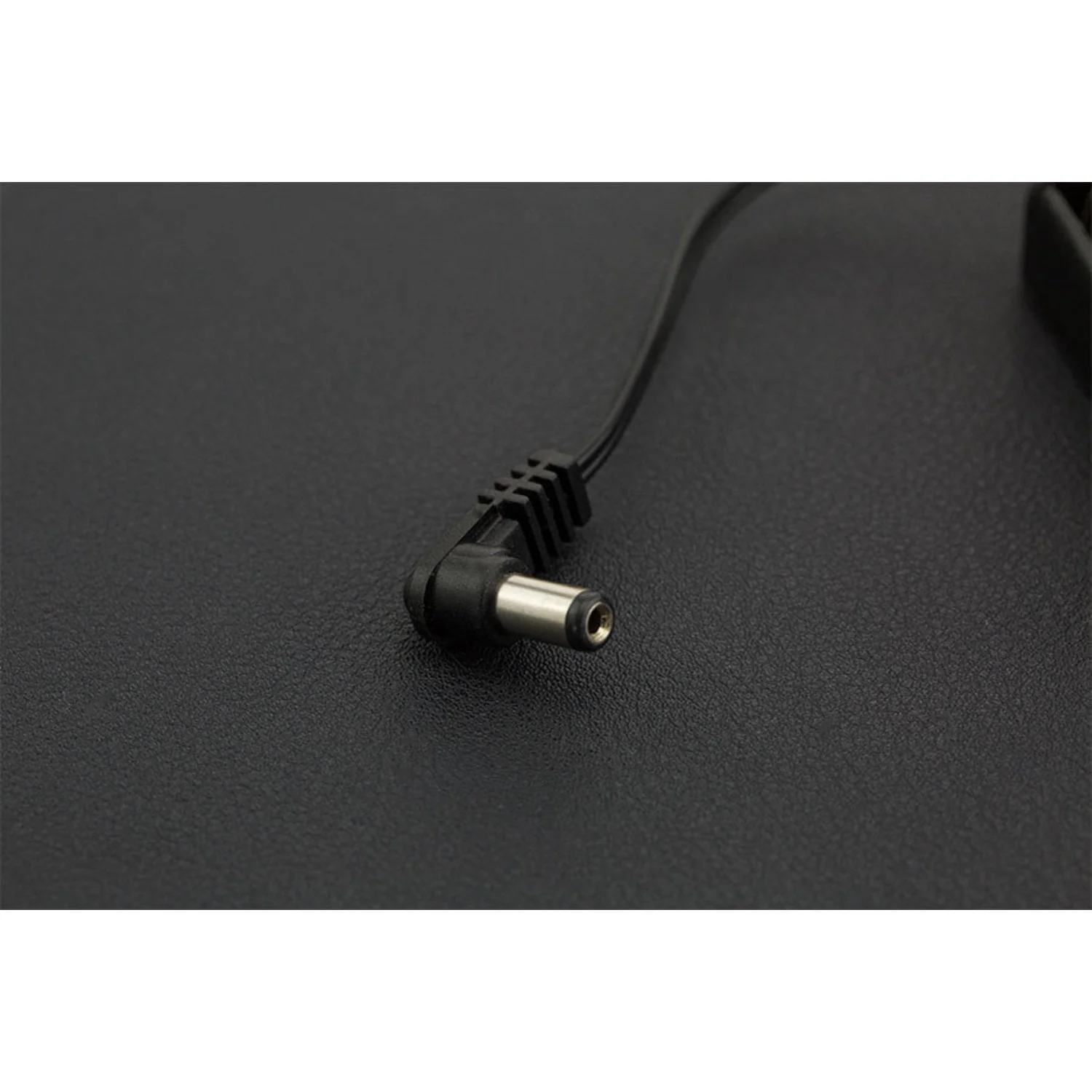

• Connector: DC 2.1mm power jack
• Material: Plastic
• Max Operating Temperature: 80°C
• Dimensions: 93×57×15mm
• Mounting Hole Spacing: 76mm
• Mounting Hole Diameter: 3mm

Also Available

• 6×AA Battery Holder (bare wires)
• 6×AA Battery Holder (double layer)
• 6×AA Battery Holder with DC Connector
• 6× AA Battery Holder (Pololu)
• 6× AA Battery Holder with 5.5/2.1mm DC Plug (Adafruit)

Ideal For

• Powering Arduino boards directly via barrel jack
• Portable electronics and robotics
• Mounted battery power supply for enclosures

Package Contents

• 1× 6×AA battery holder with DC2.1 power jack
