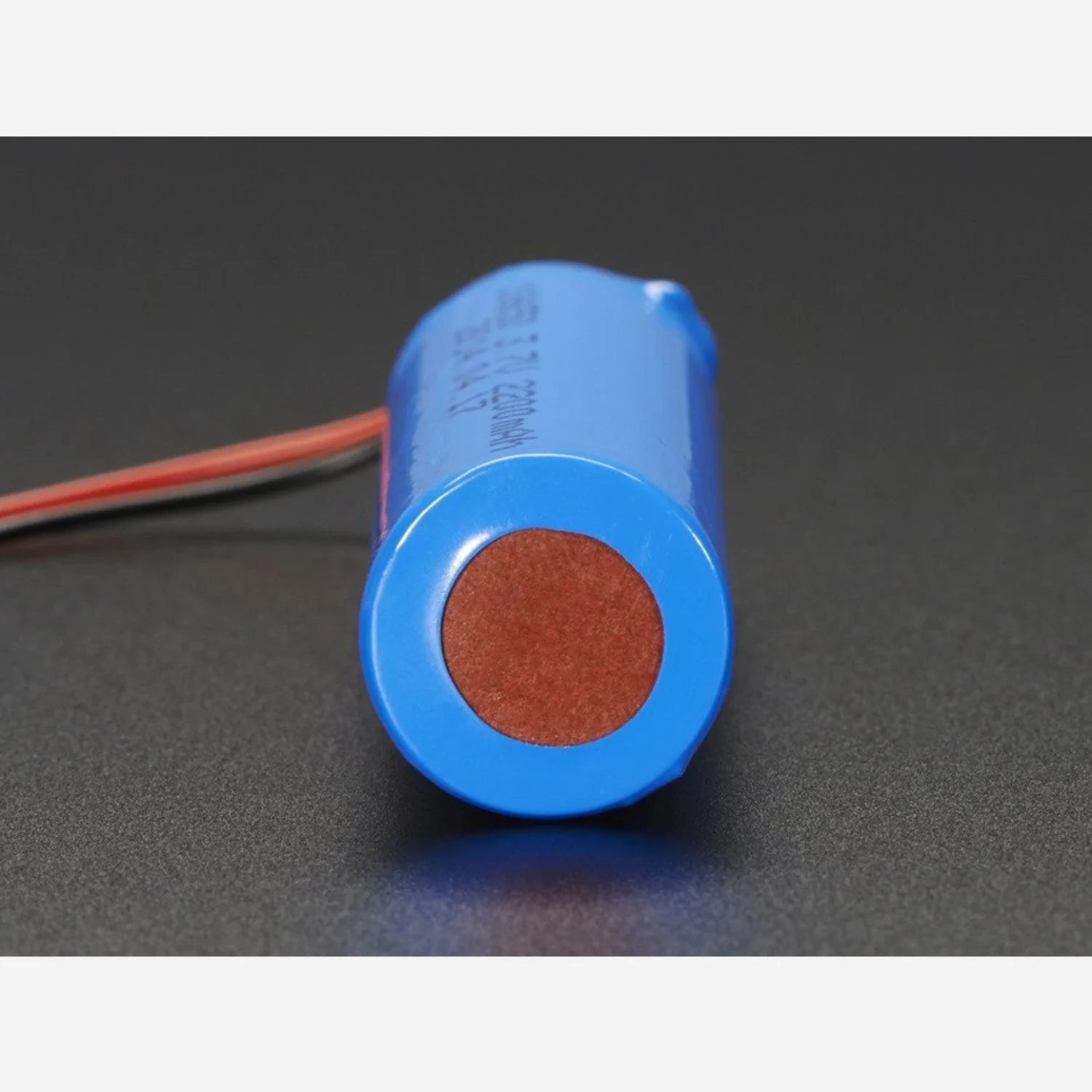

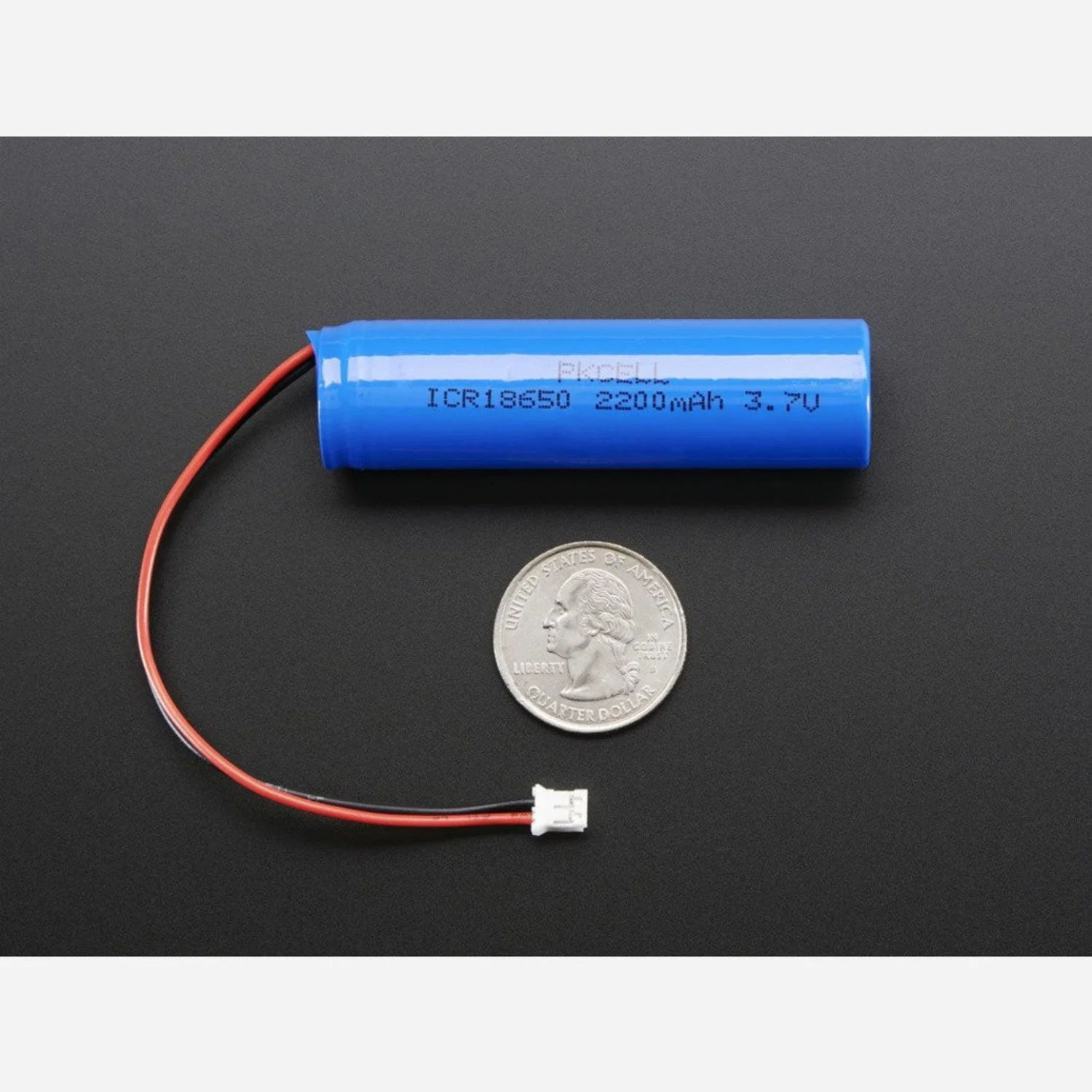

A 3.7V 2,200 mAh lithium-ion cylindrical battery with built-in protection circuitry for over-voltage, under-voltage, and over-current protection. Slim enough to fit into many project enclosures and includes a JST 2-pin cable with a genuine JST connector for smooth, snag-free connections.

The battery can deliver up to 2C peak current (4,400 mA), though sustained draws should be kept under 0.5C (approximately 1 A). The protection circuit cuts output at 2.5V to prevent over-discharge.

Key Features

• 2,200 mAh Capacity – Plenty of power for portable projects
• Built-In Protection – Over-voltage, under-voltage, and over-current circuitry
• JST 2-Pin Cable Included – Genuine JST connector, rated for 2 A
• 3.7V Nominal – Standard lithium-ion voltage
• 2C Peak / 0.5C Sustained – Up to 4,400 mA peak, ~1 A recommended continuous

Specifications

• Chemistry – Lithium Ion
• Nominal Voltage – 3.7V
• Capacity – 2,200 mAh
• Cut-Off Voltage – 2.5V
• Recommended Charge Rate – 0.5C (1 A) or less
• Connector – JST 2-pin (included)

Ideal For

• Portable electronics and IoT devices
• Arduino and Raspberry Pi projects
• Wearable technology
• Battery-powered sensor nodes

Package Contents

• 1× Lithium Ion Cylindrical Battery (3.7V, 2,200 mAh)
• 1× JST 2-Pin Cable
