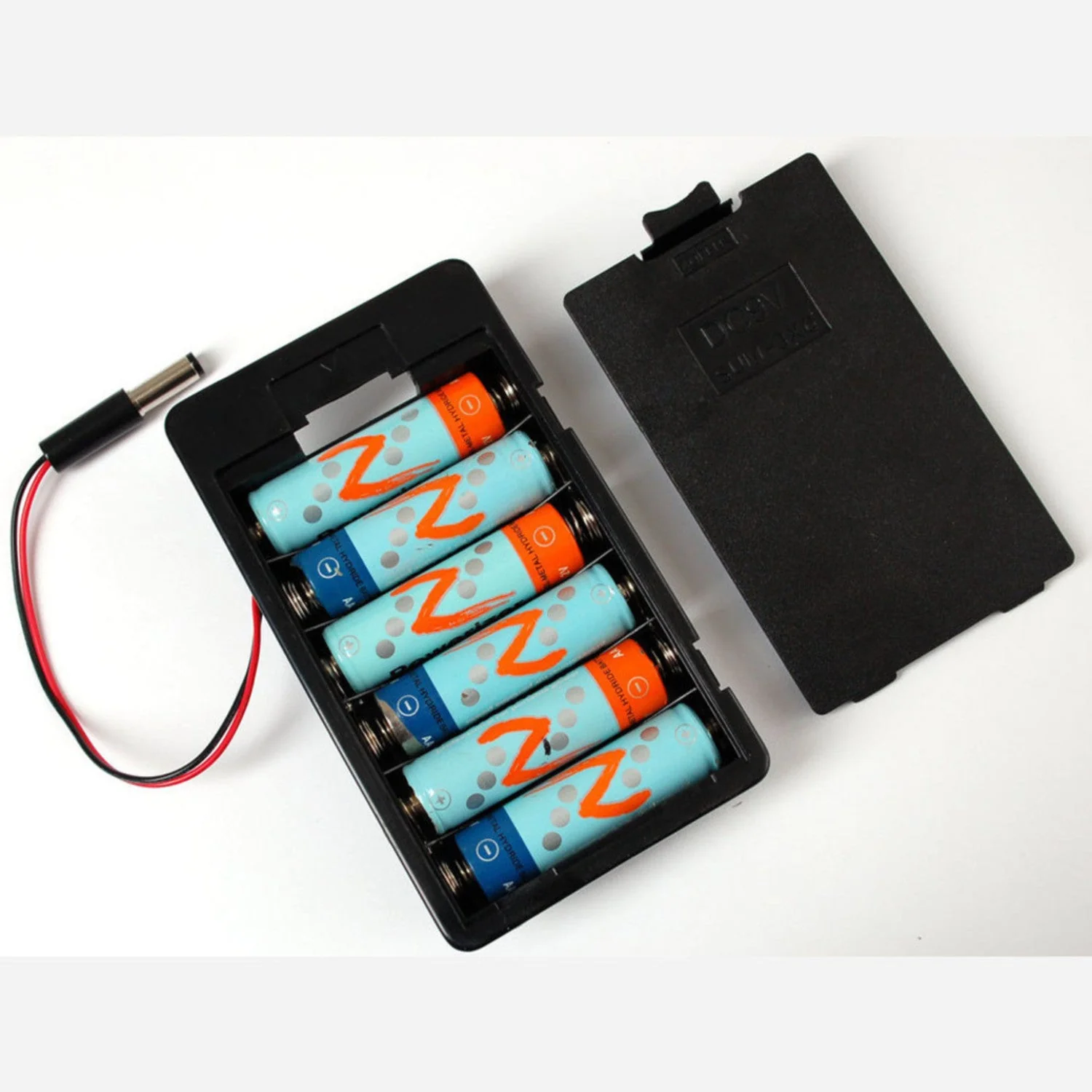

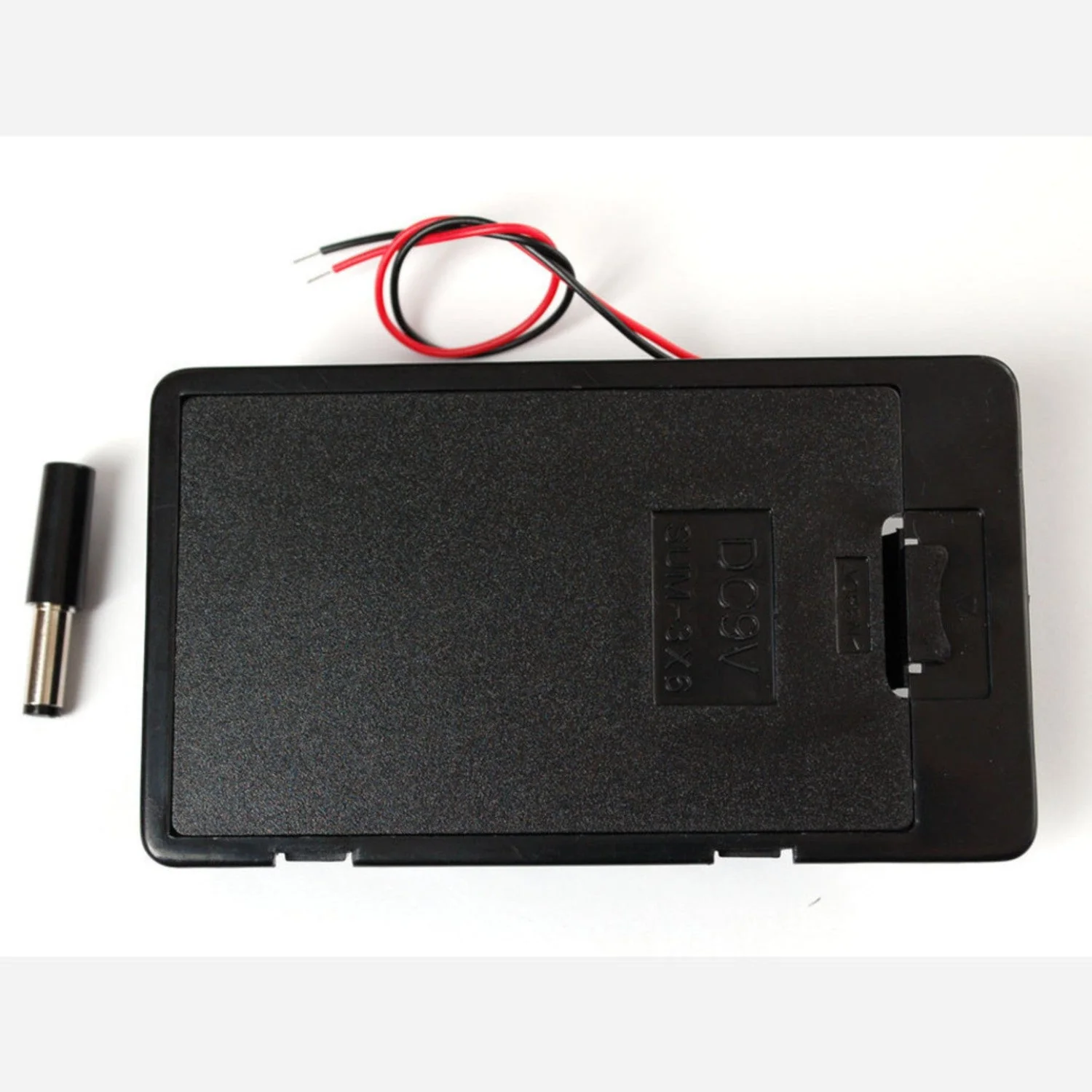

A 6×AA battery holder with a 5.5mm/2.1mm DC barrel plug, ready to power Arduino boards and other electronics with a standard DC jack. Use alkaline AAs for approximately 9V at 3000–4000mAh, or rechargeable NiMH cells for 7.2V at ~2000mAh.

The 9V alkaline output is ideal for boards with a 5V voltage regulator that require 7V+ input. Lasts about 10 times longer than a single 9V battery.

Key Features

• DC Barrel Plug – 5.5mm/2.1mm centre-positive plug, fits Arduino and most dev boards
• 6×AA Series Configuration – ~9V (alkaline) or ~7.2V (NiMH)
• High Capacity – 3000–4000mAh with alkaline cells

Specifications

• Battery Type – 6× AA (not included)
• Output Voltage – ~9V (alkaline) or ~7.2V (NiMH)
• Connector – 5.5mm/2.1mm DC barrel plug (centre positive)

Also Available

• 6×AA Battery Holder (bare wires)
• 6×AA Battery Holder with DC Connector
• 4×AA Battery Holder with Switch
• 8×AA Battery Holder with DC Plug & Switch

Ideal For

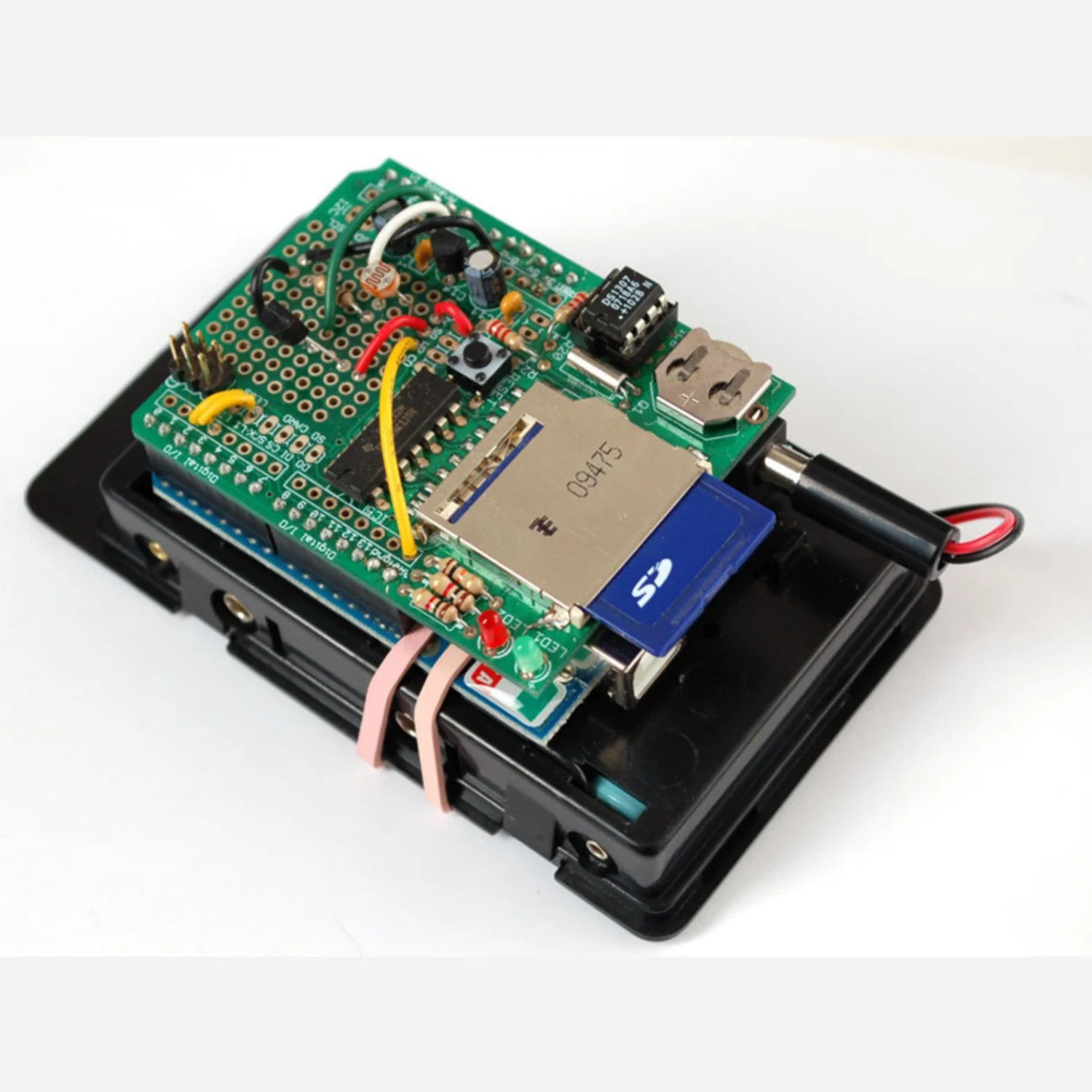

• Portable Arduino and electronics projects
• Battery-powered prototypes with DC jack input
• Extended-runtime portable power

Package Contents

• 1× 6×AA battery holder with DC barrel plug (batteries not included)
