A compact latching power switch with built-in reverse voltage protection. One push turns power on, another push turns it off – providing clean, reliable power control without bulky mechanical switches.

This low-voltage (LV) version operates from 2.2V to 20V with up to 6A continuous current, making it ideal for battery-powered robots, portable electronics, and microcontroller projects. Additional control inputs enable advanced features like automatic shutdown triggered by the device being powered.

Key Features

• Latching Pushbutton Control – Push on, push off operation
• Reverse Voltage Protection – Protects your circuit from incorrect polarity
• Wide Voltage Range – Operates from 2.2V to 20V
• High Current Capacity – Up to 6A continuous

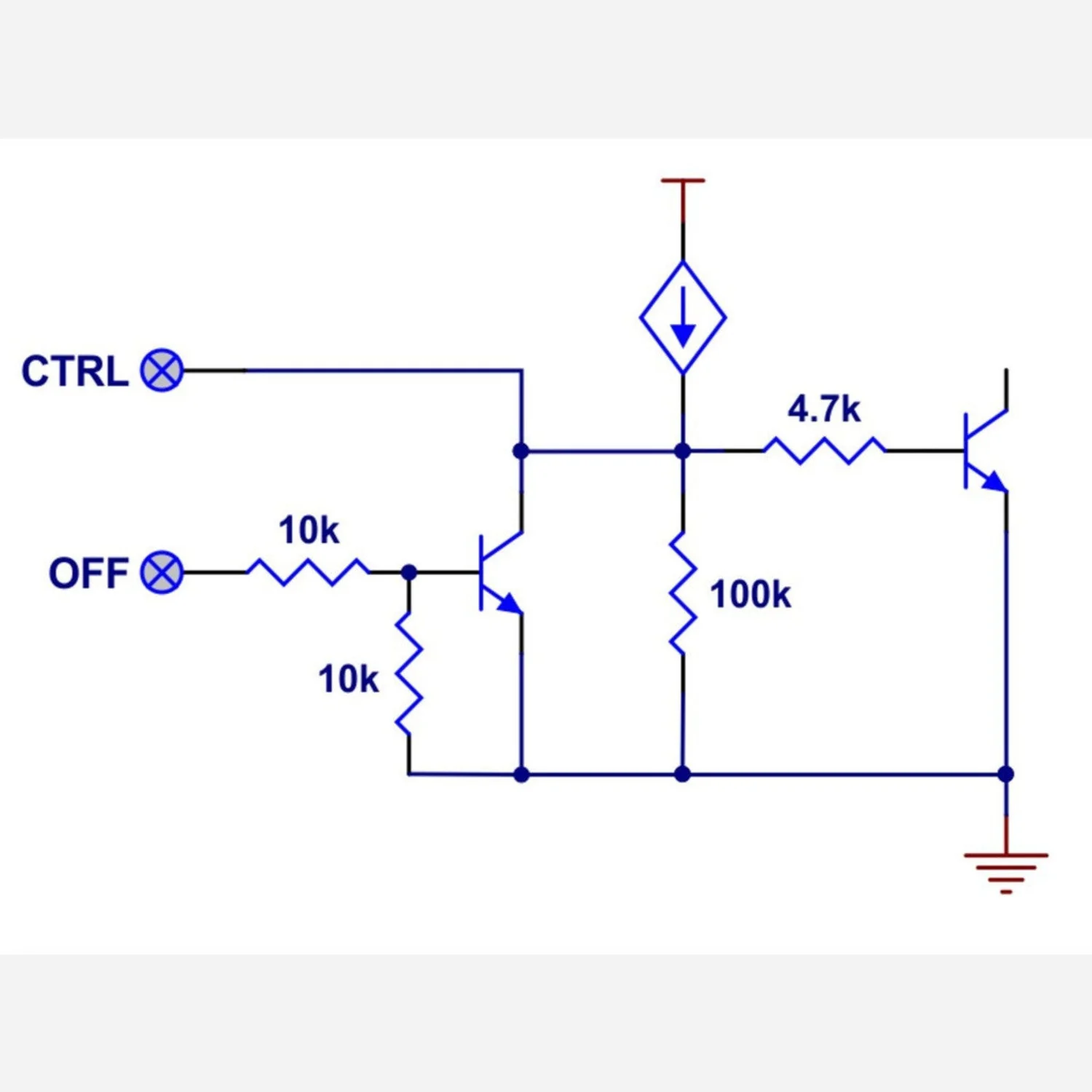

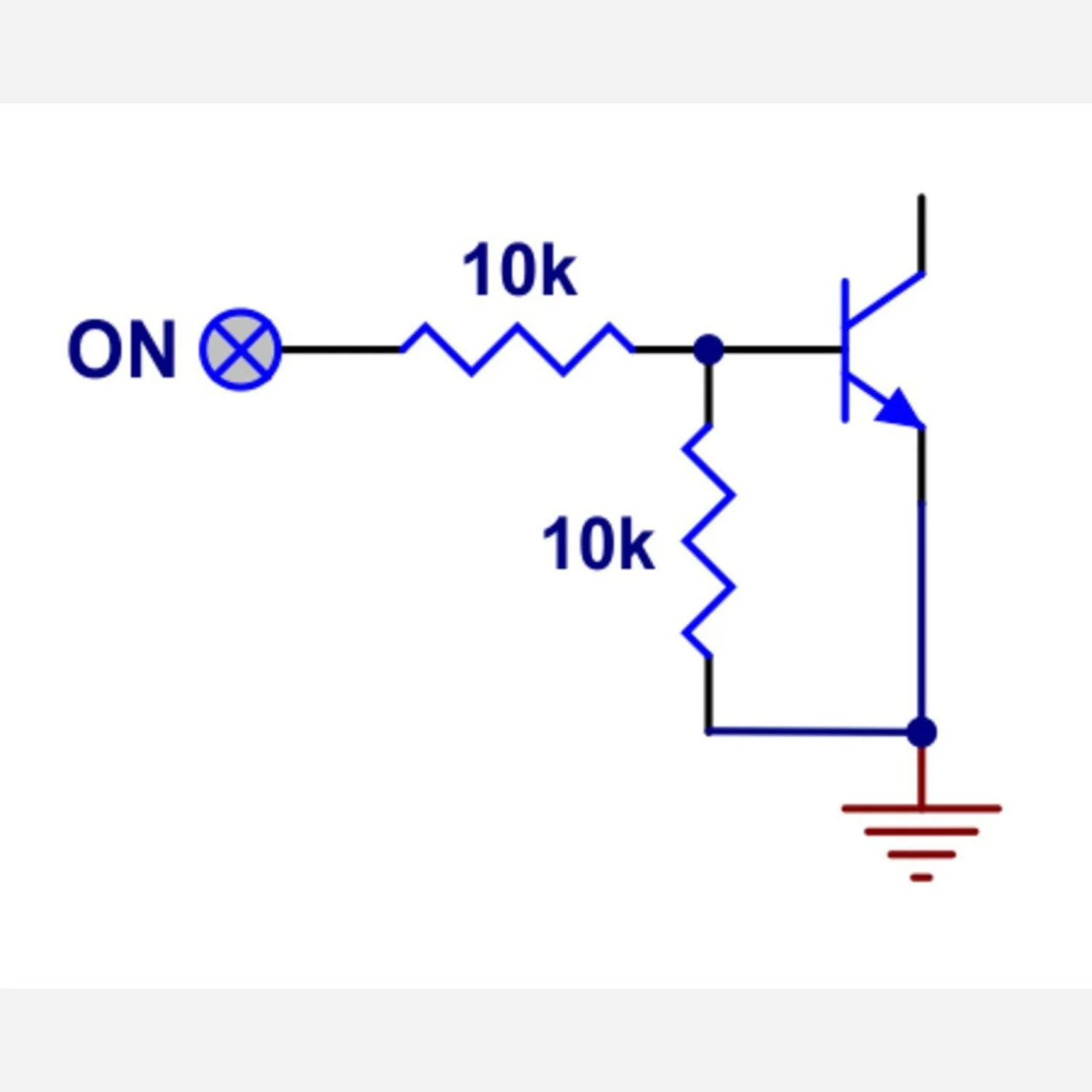

• Control Inputs – Enable automatic shutdown from your microcontroller
• Compact Size – Much smaller than mechanical toggle switches

Ideal For

• Battery-powered robots
• Portable electronics projects
• Arduino and microcontroller power control
• RC vehicles and drones
• Any project needing clean on/off control

Specifications

• Input Voltage: 2.2V to 20V
• Maximum Continuous Current: 6A
• Switch Type: Latching (push on/push off)
• Protection: Reverse voltage

Package Contents

• 1× Mini Pushbutton Power Switch (LV version)
